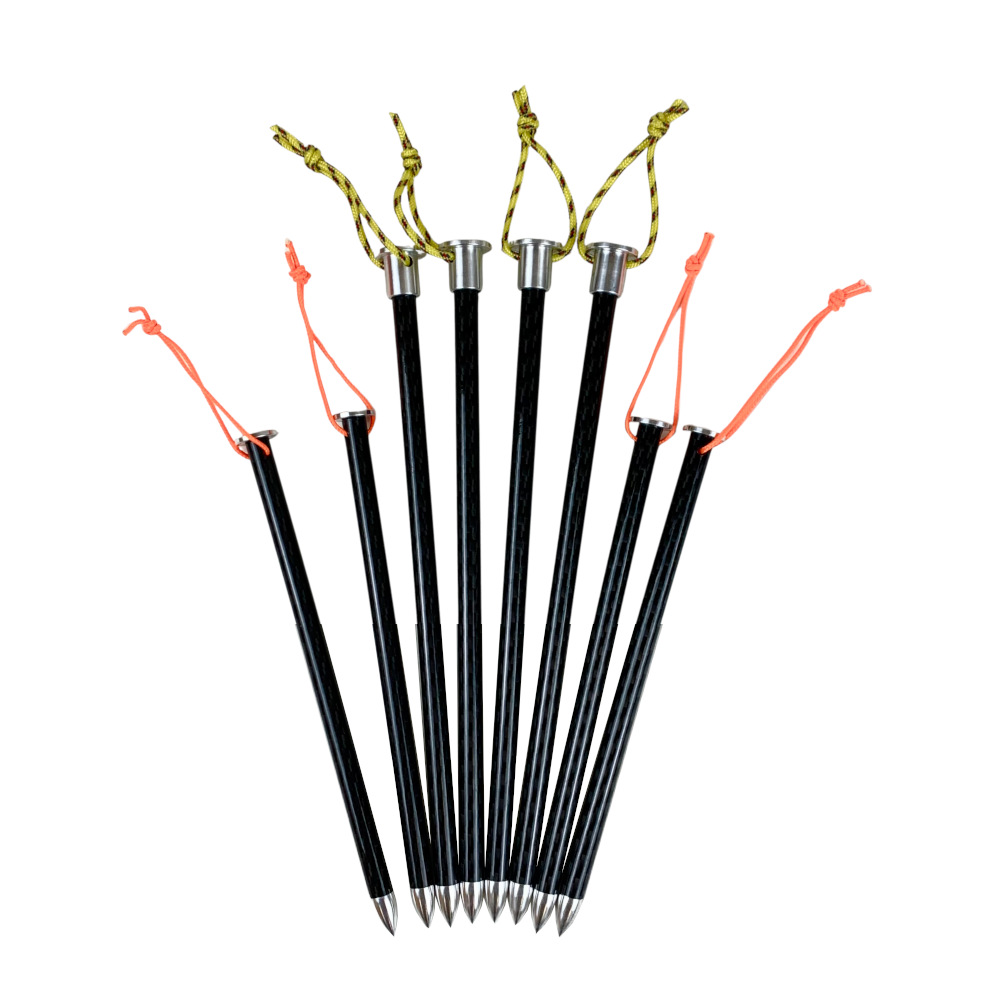

Four 8.5" stakes and four 6.5" stakes

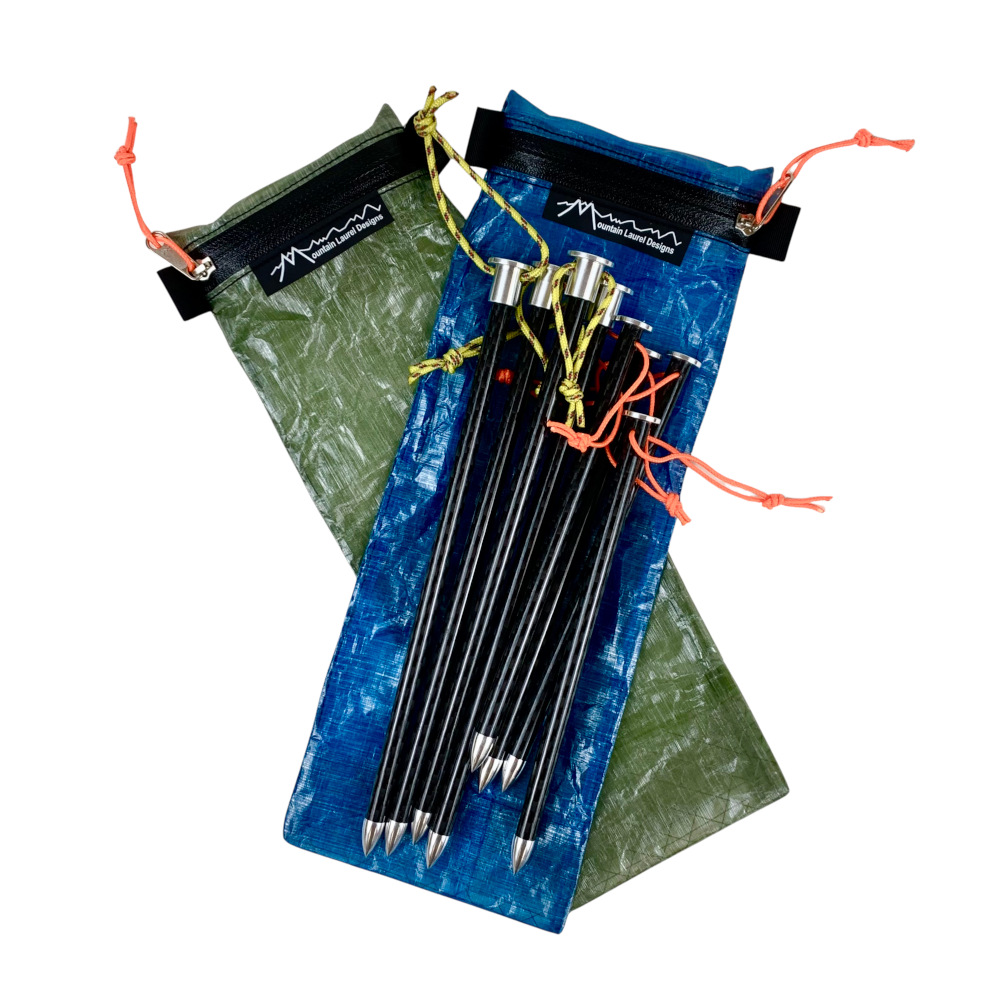

Four 8.5" stakes and four 6.5" stakes ontop of add on stake sacks

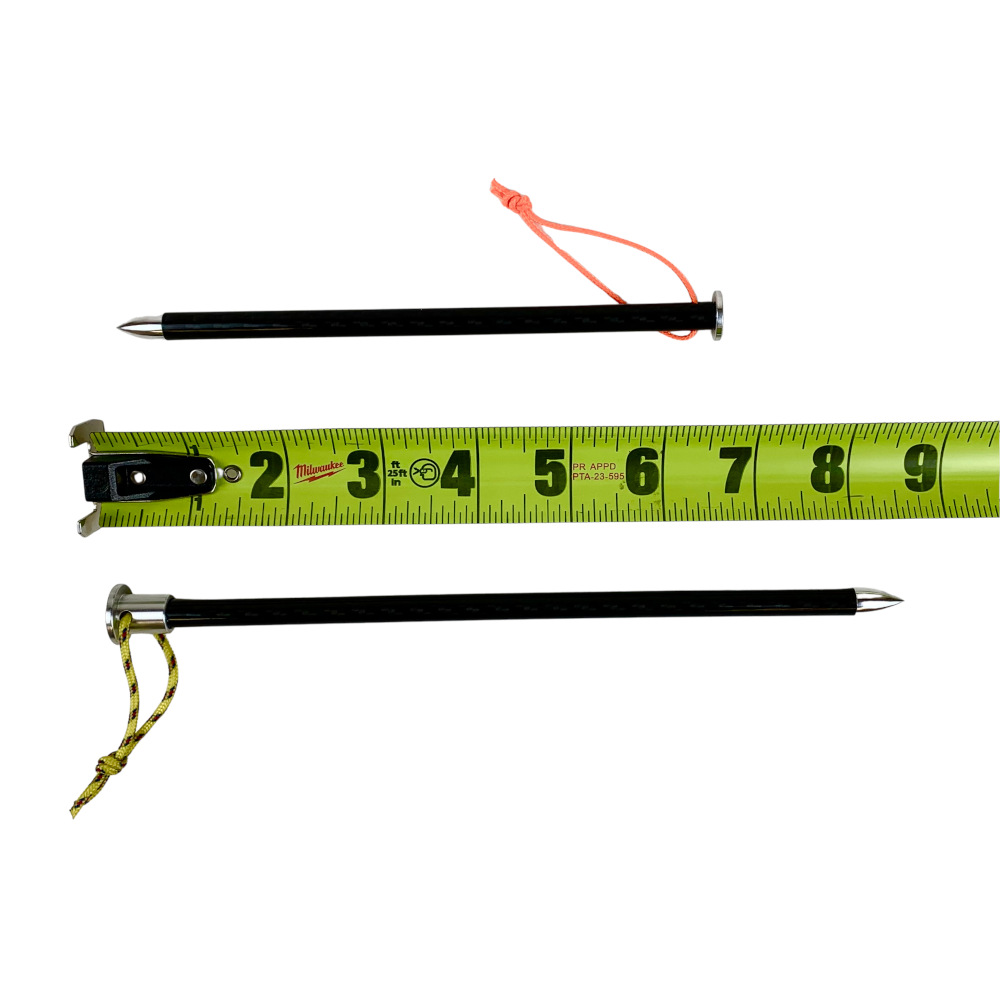

An 8.5" and a 6.5" stake next to a measuring tape.

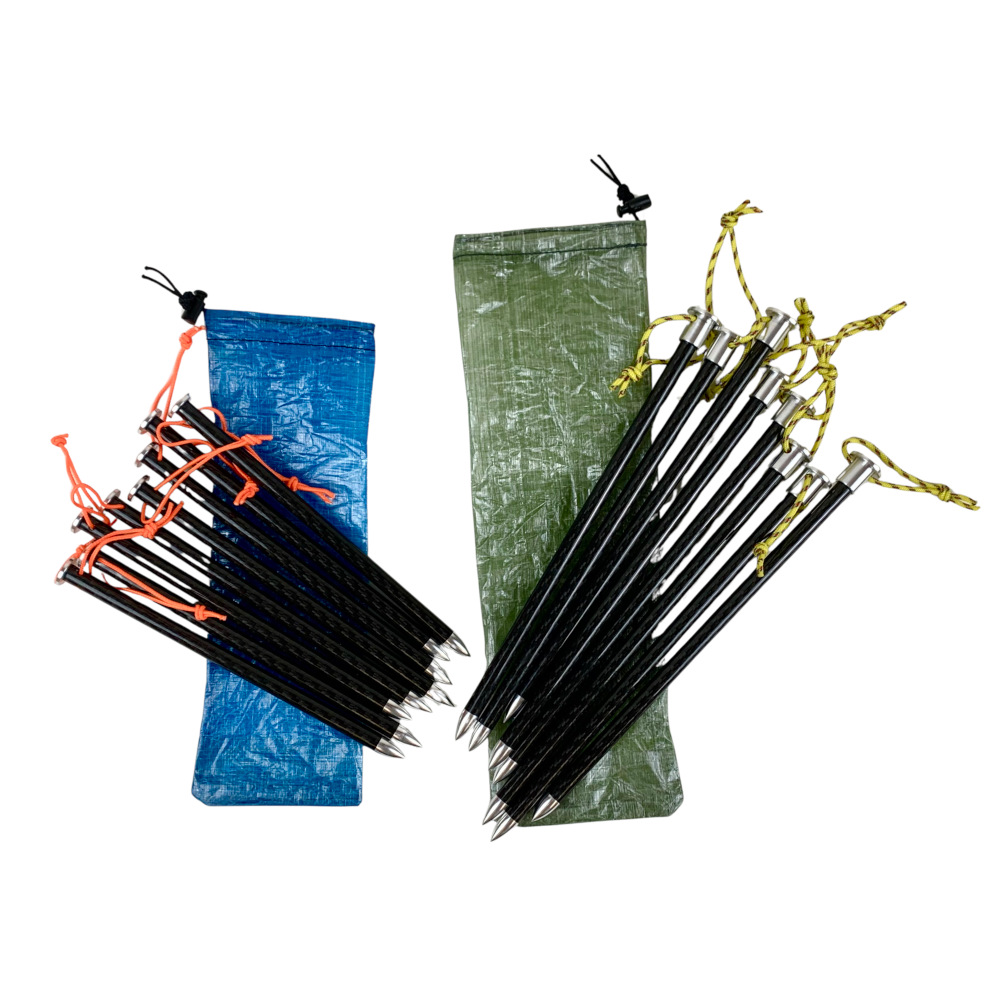

Eight 6.5" Stakes and eight 8.5" stakes ontop of add-on stake sacks

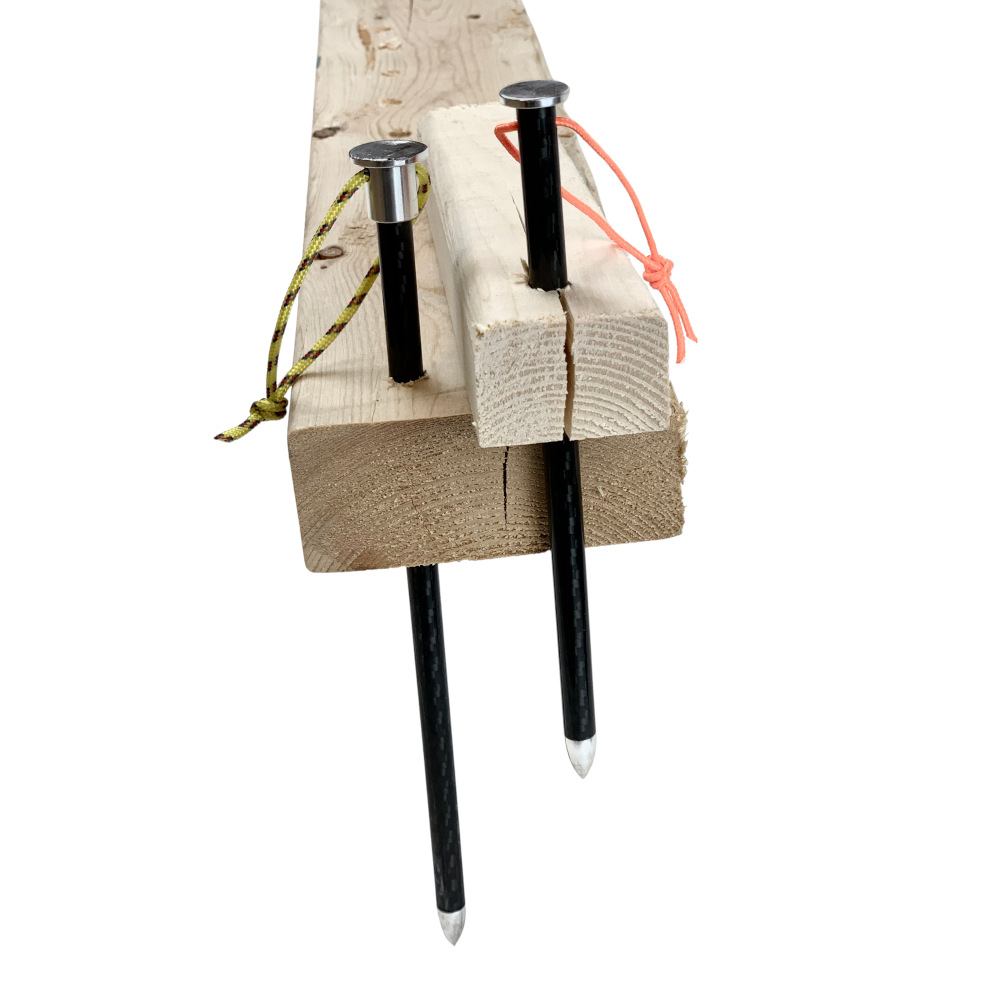

Two Carbon Fiber Nano Stakes nailed through 2 x 4 wood boreds
An up close of the heads of the Nail Stakes

MLD Carbon Fiber NanoNail ™️ Tent Stakes

Price range: $3.65 through $52.00

8.5″ STAKES
LENGTH: 8.5″ in | 21.6 cm
DIAMETER: 0.30″ in | 7.8 mm
HEAD DIAMETER: 0.67″ in | 17 mm

6.5″ STAKES
LENGTH: 6.5″ in | 16.5 cm
DIAMETER: 0.30″ in | 7.8 mm
HEAD DIAMETER: 0.55″ in | 14 mm

NanoNail ™️ Stakes were built to be the best all-around ultralight stakes available. Compared to other nail or tube stakes, they are stronger and more user friendly with better holding power due to extra length and a larger diameter shaft at only a few grams more.

  • *SIZE + QUANTITY

    Reset options

    Which Sized Add-on DCF Stake Sack Do You Need?

    Small DCF Cinch Sack: Holds Up to 6 Stakes.
    Large DCF Cinch Sack: Hold Up to 10 Stakes.
    DCF Zip Sack: Holds Up to 16 Stakes.

The Best All-around Ultralight Stakes Available.

8.5″ STAKES
LENGTH: 8.5″ in | 21.6 cm
DIAMETER: 0.30″ in | 7.8 mm
HEAD DIAMETER: 0.67″ in | 17 mm

6.5″ STAKES
LENGTH: 6.5″ in | 16.5 cm
DIAMETER: 0.30″ in | 7.8 mm
HEAD DIAMETER: 0.55″ in | 14 mm

MLD Carbon Fiber NanoNail ™️ Stakes were built to be the best all-around ultralight stakes available. We did not design these to be the lightest possible. Compared to other nail or tube stakes, they are stronger and more user friendly with better holding power due to extra length and a larger diameter shaft at only a few grams more. Your shelter collapsing due to stakes pulling out in the middle of the night can be prevented using NanoNail Stakes.

Cost is 25% to 40% lower than other CF stakes. Only $3.25 in a 16 stake ultimate set.

Our Carbon Fiber NanoNail Stakes were designed to be used with any type of shelter. The full size 8.5” stakes for corners of big PyraMids and tents in high wind and the smaller 6.5” stakes for secondary stakes points on medium size PyraMids, smaller shelters and tarps.

Q: Why do round shaft nail/tube stakes hold so well?
A: The Stiction Force of the displaced and compacted ground around the stake shaft exerts holding power uniformly vs a V or Y stake that disturbs the ground
more at insertion and has variable stiction over on the many stake surfaces. The NanoNail 7.8mm round shaft has enough surface area for high stiction without tearing up too much ground. A smaller CF or AL shaft or a small skewer stakes has less surface area for that high holding power, especially in softer ground.

Advantages of the NanoNail VS a similar length, girth and weight Y stake:

• Far More Holding Power
• Lighter Weight
• Easier to insert into hard ground.
• Head does not cut hands or shoe bottoms.
• Head has better retention of the guyline cord loop.
• Shaft does not hold as much mud after removal.
• Easier Cleaning
• Packs Smaller

FEATURES

• Thick Wall 8mm OD Hi Modulus Carbon Fiber Shafts.
• Oversize heads for easy insertion and guy line loop retention.
• Longer, tougher and sharper tips than other nail/ tube stakes.
• 7075 Aluminum machined (not 3D printed) heads and tips.
• Aerospace grade epoxy secures heads and tips.
• Bright pull cord loops for easy ground clutter ID and removal.

• Angle the stake at 30 degrees for max holding power.
• Easy Removal: Use one stake through the pull cords to make a grip handle.
• For large shelters in high winds, double up the main corner stakes. Insert in an inverted V.
• In snow, girth hitch stakes in middle and bury at 90 degrees from the pull direction. Prep and compact the snow to lock it down.
• If you need to hammer them in, try VERY hard to keep the force in line with the stake shaft and the force centered on the head. If ground that hard, also no need to pound it in very far. The 6.5” lighter head stake version should only be tapped in,
not pounded.
